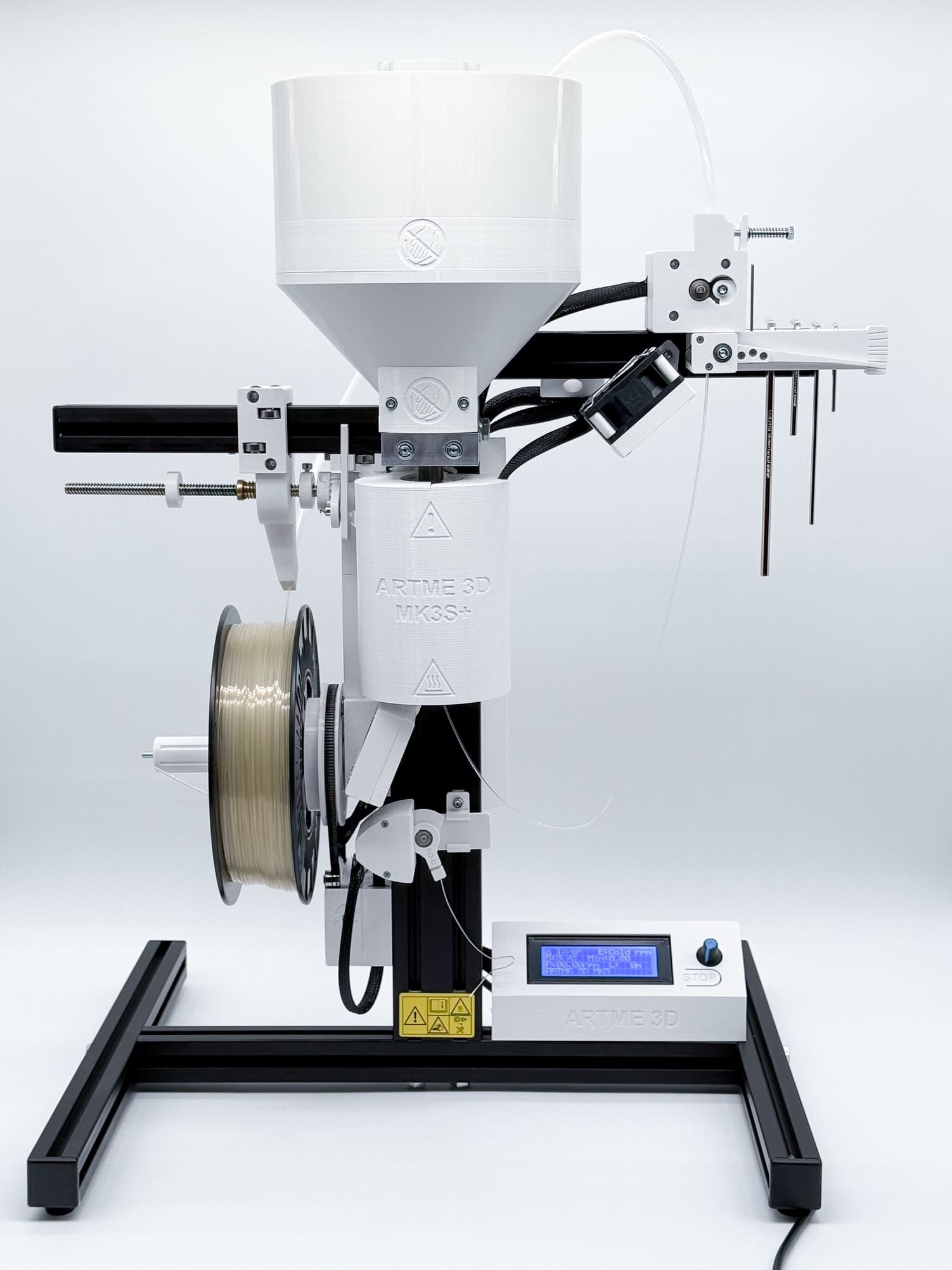

Original Desktop Filament Extruder MK3S (DIY KIT)

To purchase on account, you can contact us here on our webseite artme-3d.de.

The original ARTME 3D® “MK3S” Desktop Filament Extruder is available for sale here:

• Produce filament from PLA, PETG, ABS, ASA, TPU pellets, or 100% recycled regrind.
• Precise diameter tolerance with a production capacity of up to 400 g/h.
• Extrude, calibrate, and wind filament with a footprint of 400x450mm.
• Simple and ergonomic operation, plus two extruder screws for material flexibility.

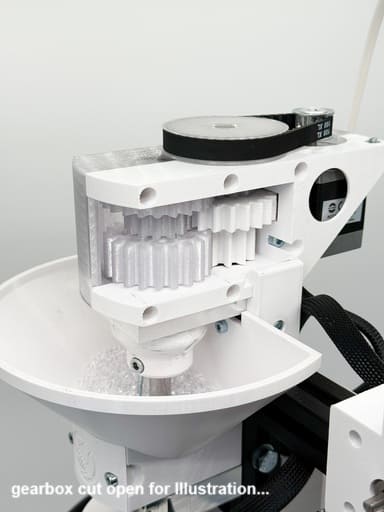

• The MK3S version features a 3D-printed gear drive to reduce costs and help users learn how gear drives work.
• The kit comes with most needed tools and 500g of PLA Pellets.
• You can find more details in the product description on our website artme-3d.de.

Important to know:

• The machine is delivered as a kit for self-assembly.
• The 3D-printed parts are not included in the kit. You can find them for self-printing here on our website artme-3d.de.
• You will also need:
  • • Empty filament spool
    • Hammer or vise
    • Dust mask, if necessary
    • Isopropyl alcohol and paper towels
    • Folding ruler (with millimeter scale)
    • Scissors
    • Lighter
• The differences between the available models—MK3S+, MK3S, and MK3S light—are explained in the product description.
• The delivery includes safety instructions and a quick start guide in paper form. You will need an internet connection to access the assembly and operating instructions: www.artme-3d.de/produkte.

Shipping Details and Customs:

Demand is currently high, so the preparation time until shipment is currently 4 to 8 days after ordering. Shipping time then depends on the destination country. The item is shipped from Germany. Please note that shipping to other countries may take some time and that customs duties or other taxes may apply upon import into your country.

Assembly time:

Depending on your experience assembling such kits, you should plan on spending between 7 and 16 hours on assembly.

Please also note:

Please review the Terms and Conditions of ARTME 3D®.

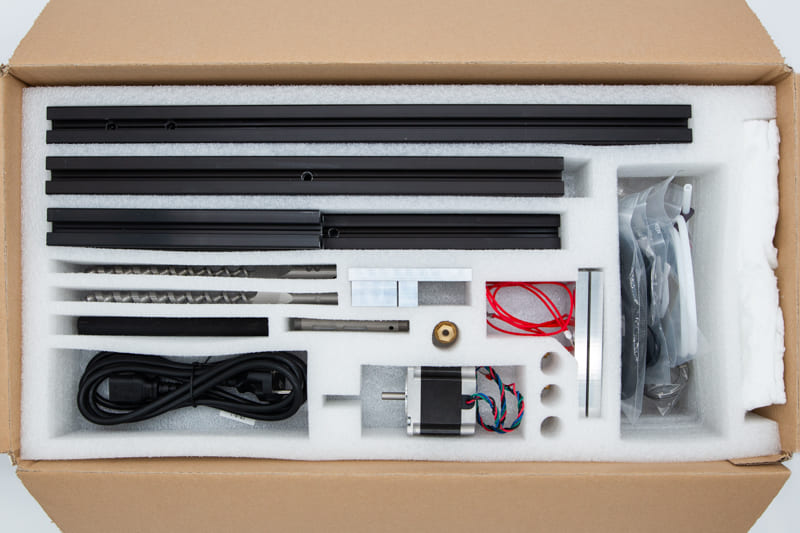

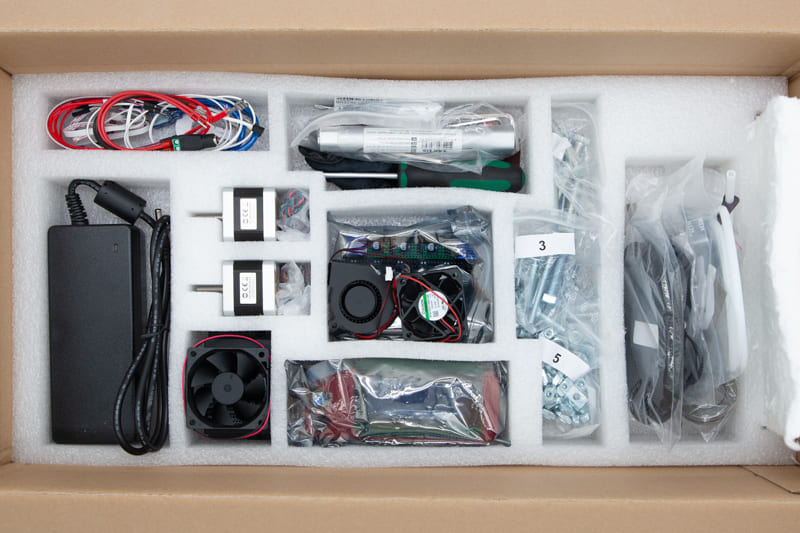

Kit Contents:

66 wood screws
24 wood screws
1 wood screw
11 cylinder head screws
63 cylinder head screws
2 cylinder head screws
2 countersunk screws
1 hexagon head screw
1 hexagon head screw
1 hexagon head screw
4 washers
2 washers
6 washers
32 slotted nuts/hammer nuts
2 slotted nuts
1 threaded nut
2 clamping washers
4 hex screws
2 hex screws
6 cover caps
1 timing belt
4 rubber feet
1 fan grille 50×50
1 fan grille 60x60
2 Wire for sensor arm
1 Ball bearing
1 Thrust bearing
24 Ball bearings
2 Ball bearings
1 Anti-backlash spring-loaded brass nut
1 Timing belt pulley
1 Trapezoidal threaded spindle
1 Extruder feed wheel
2 Compression spring latches/pullers
1 Tension spring swing arm
1 PTFE tube
1 Braided hose
1 Braided hose
1 Braided hose
1 Spring steel pin
1 Melt filter
1 Teflon tape
1 Key
4 Cylinder head screws
5 Slotted nuts
2 Threaded nuts
1 Set screw
4 Countersunk head screws
1 Stepper motor Nema23
1 Stepper motor with 420mm connection cable
1 stepper motor with 210mm connection cable
1 stepper motor driver
1 extruder tube

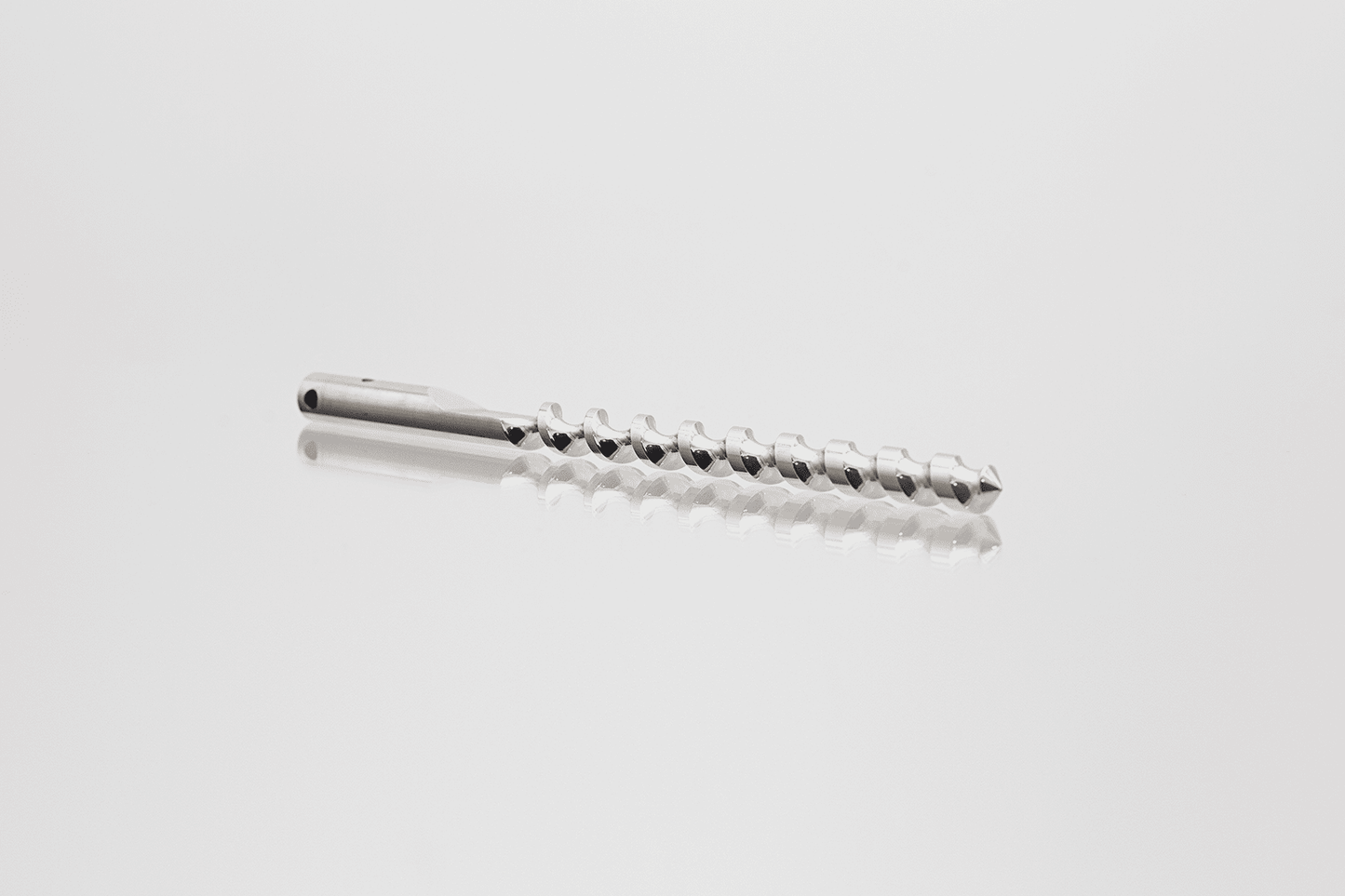

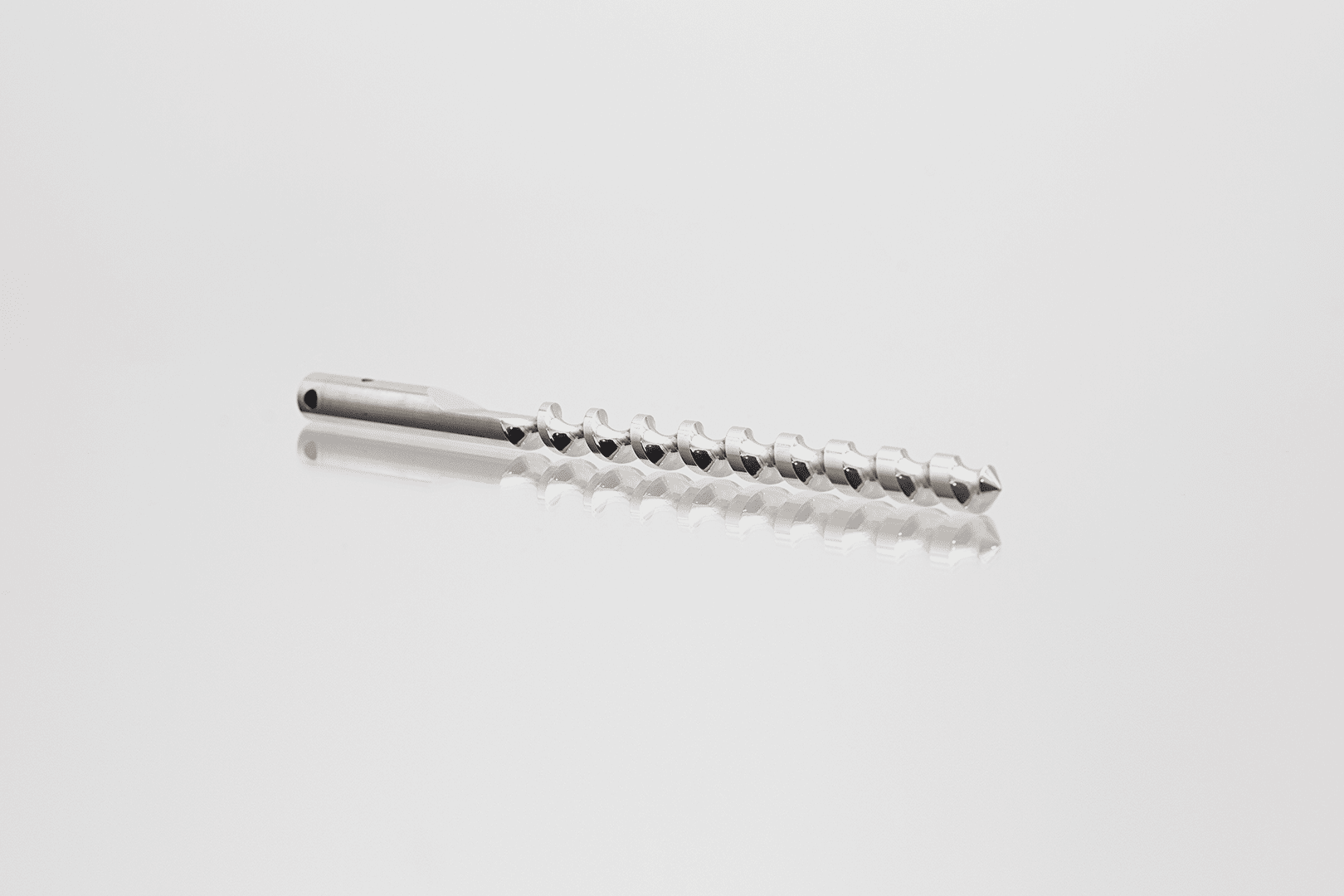

1 extruder screw (high compression)
1 extruder screw (low compression)
1 aluminum heating element
1 motor mount
1 tube mount 1
1 tube mount 2
2 metal shafts for gear
1 nozzle with M6 thread
1 3D printer nozzle PLA/PETG
1 3D printer nozzle ABS
1 3D printer nozzle blank
1 aluminum profile 500mm
1 aluminum profile 400mm
2 aluminum profiles 400mm
2 aluminum profiles 210mm
2 heating cartridges
1 heat-resistant cable
1 temperature fuse
1 thermistor
2 red cables
2 black cables
1 Socket adapter
1 Optical limit switch with cable
2 Dupont cables
1 MKS Gen L board with 2 stepper motor drivers
1 LCD display with 2 ribbon cables
1 50mm fan
1 60mm fan
1 Radial fan
1 Power supply
1 Power cable
1 Ceramic fiber mat
1 Socket wrench
1 Socket wrench
5 Allen wrench
1 Screwdriver
2 Sandpaper
2 Nitrile gloves
1 Silicone grease
1 Key file
